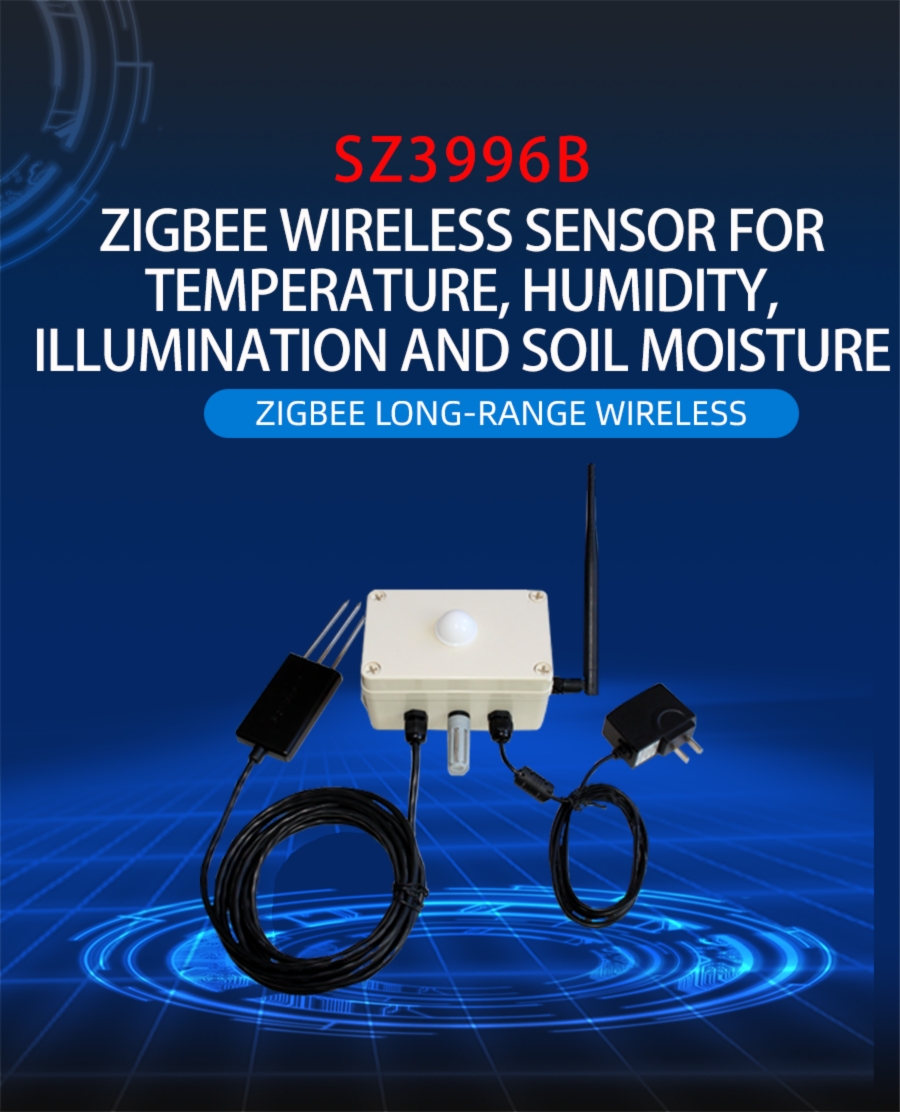

 [SZ3996B]  ZIGBEE wireless greenhouse dedicated temperature, humidity, illuminance, soil moisture, soil temperature sensor

SZ3996B SZ3996B SZ3996B

Technical Parameters

Technical parameterParameter value
BrandSONBEST
Illuminance measuring range0~65535Lux
Illuminance allow deviation±7%
Repeatability test±5%
Illuminance detection chipImport digital
Wavelength range380nm~730nm
Temperature measuring range-30℃~80℃
Temperature measuring accuracy±0.5℃ @25℃
Humidity measuring range0~100%RH
Humidity accuracy±3%RH @25℃
Moisture measuring range0~100%
Moisture measuring accuracy ±3% @25℃
Moisture Temperature range-30℃~80℃
Moisture Temperature accuracy±0.5℃ @25℃
Communication InterfaceZIGBEE
Radio frequency2.4G ISM
Network TypeStar network
Network capacity65535
PowerDC9~24V 1A
DimensionsΦ28.5mm×127mm

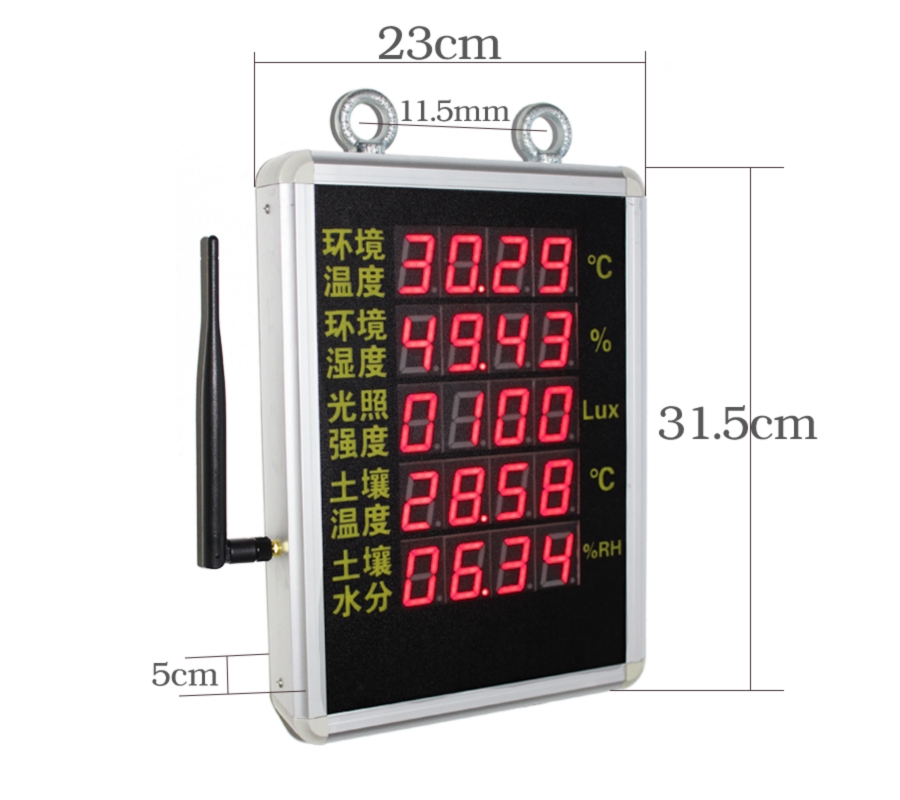

Product Size

SZ3996B

Wiring instructions

Why choose this product?

SZ3996B

How to use?

SZ3996B

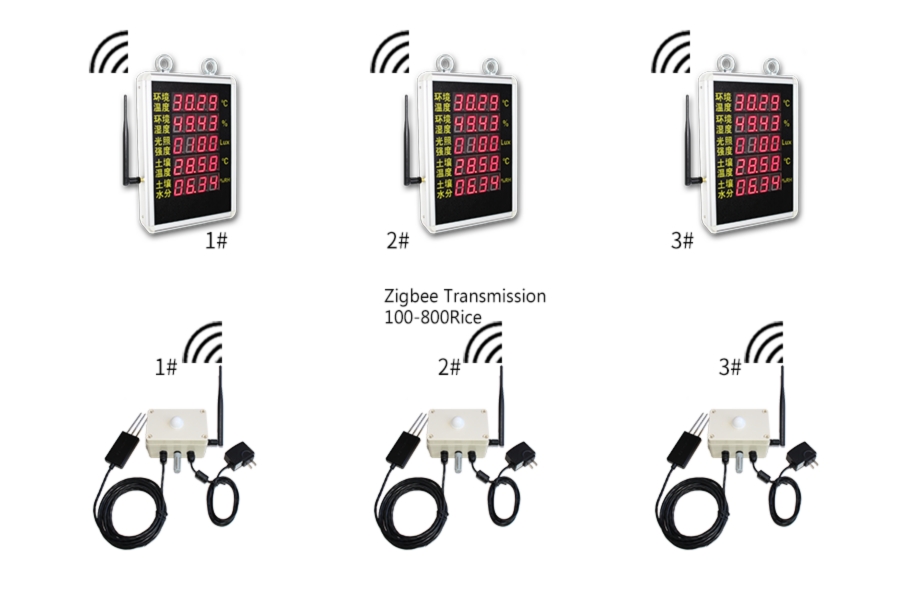

Application solution

SZ3996B SZ3996B

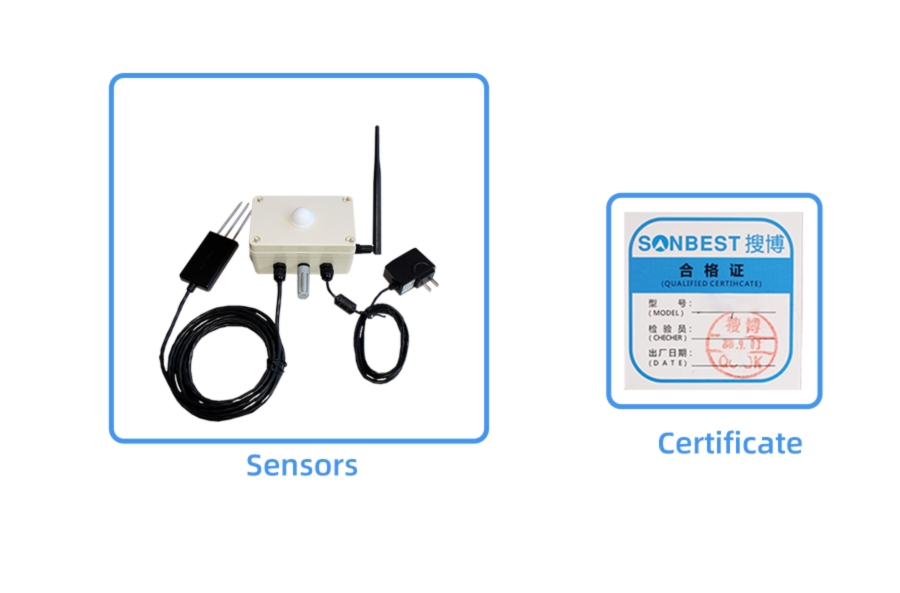

Product List

SZ3996B

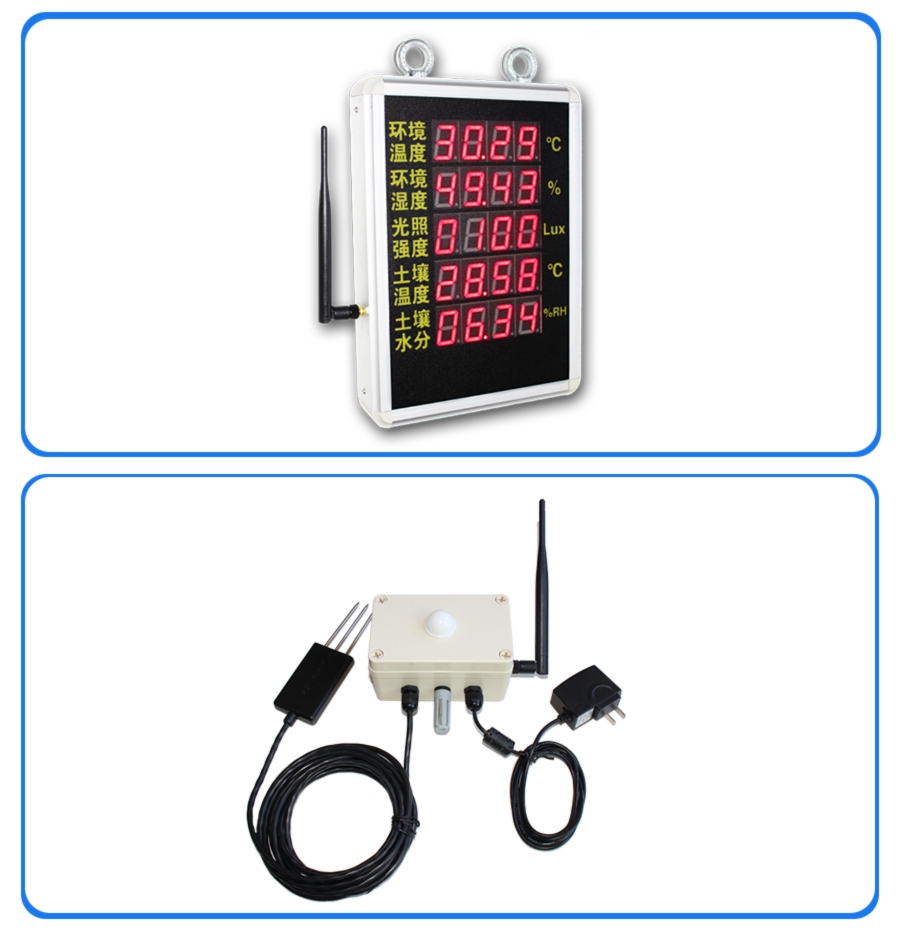

Pictures

SZ3996B
