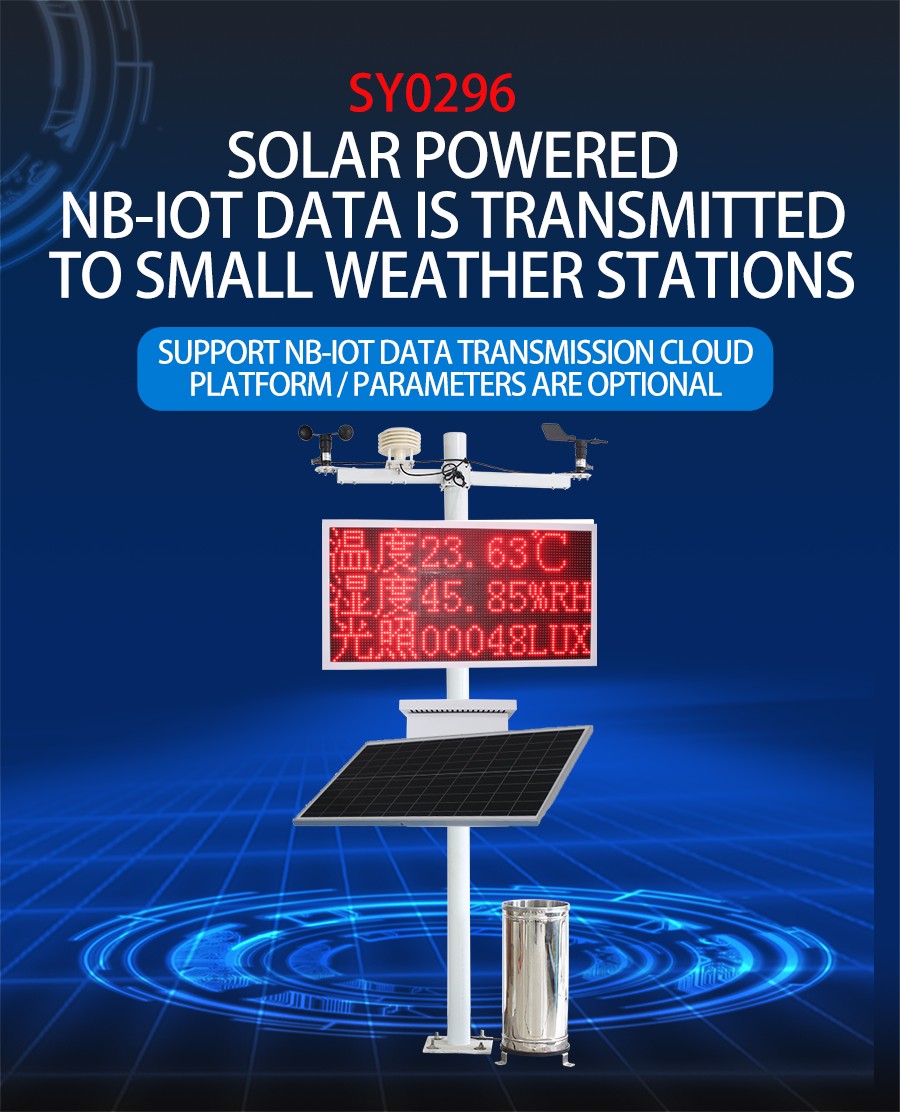

 [SY0296]  Solar powered NB-IOT data remote transmission to small meteorological stations

SY0296 SY0296

Technical Parameters

Technical parameterParameter value
BrandSONBEST
PM2.5 range0~999ug/m3
PM2.5 accuracy±15% or ±10ug/m3 max @25℃
PM10 range0~999ug/m3
PM10 accuracy±15% or ±35ug/m3 max @25℃
Wind speed range0~30m/s
Start wind0.2m/s
Wind speed accuracy±3%
Shell materialaluminum
Wind direction range0~360°
Wind direction resolution22.5°
Temperature measuring range-30℃~80℃
Temperature measuring accuracy±0.5℃ @25℃
CO2 range0~5000ppm
CO2 accuracy±100ppm
Atmospheric pressure range30~110kpa
Atmospheric pressure accuracy±0.5%
Rainfall range0.01mm~4mm/min
Rainfall Resolution0.01mm~4mm/min
Rain inlet sizeφ200mm
Rainfall Sharp edge40°~45
Rainfall accuracy±3%
Running temperature-30~85℃

Product Selection

    Product DesignRS485,DC12-24VMultiple output methods, the products are divided into the following models depending on the output method.
Product model output method
SY0296BRS485总线

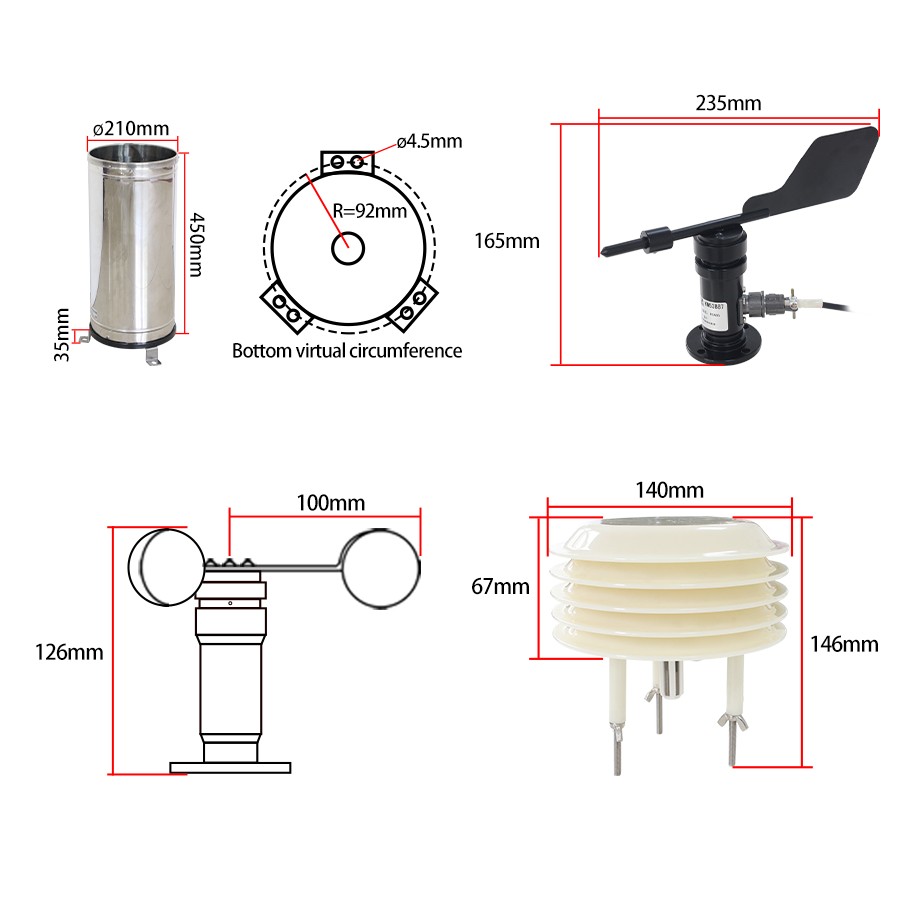

Product Size

SY0296 SY0296 SY0296 SY0296 SY0296 SY0296 SY0296

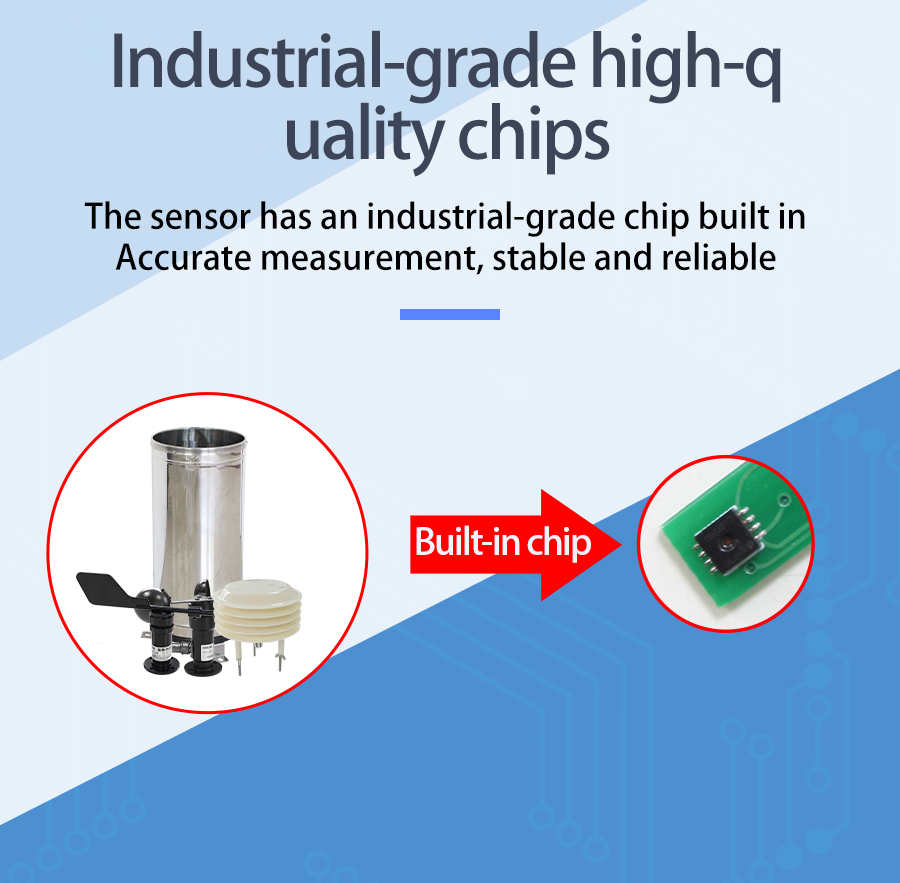

Why choose this product?

SY0296

Why choose this product?

SY0296 SY0296 SY0296 SY0296

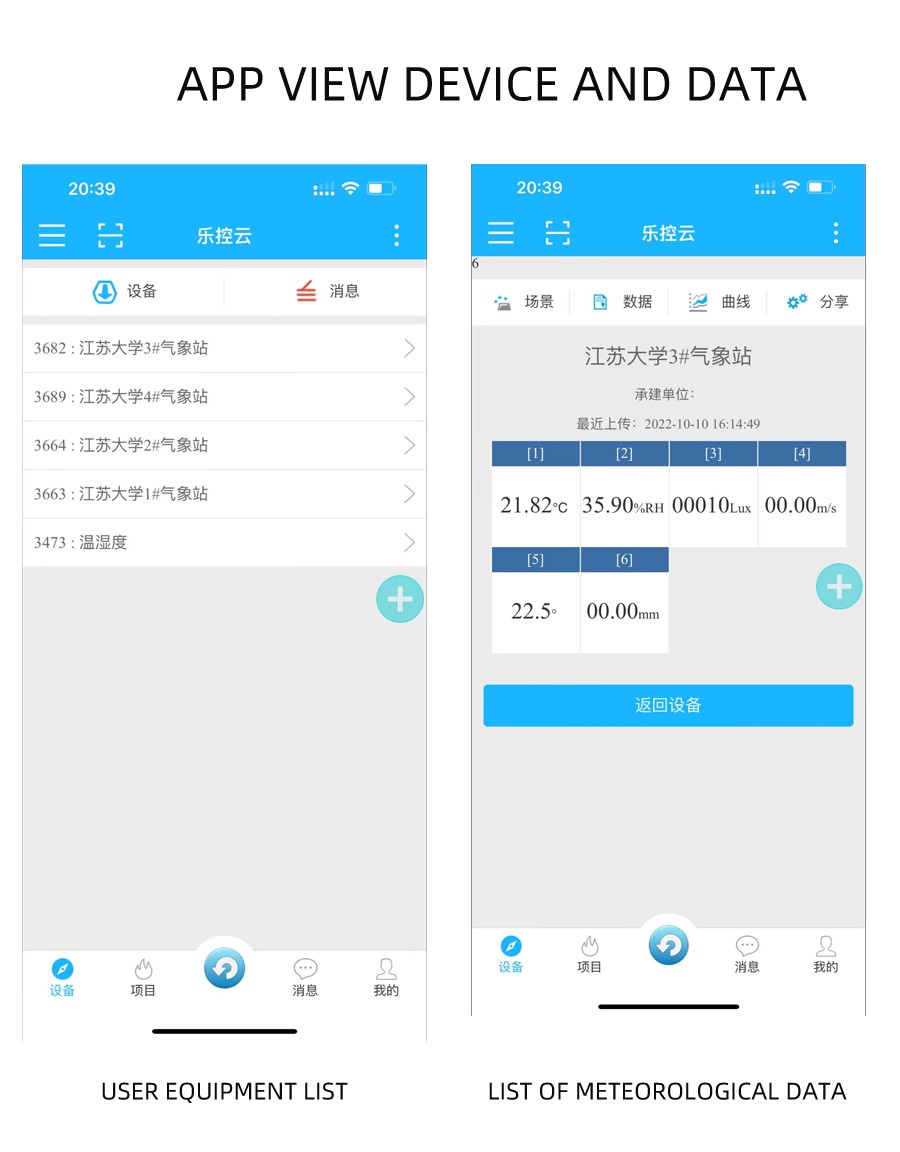

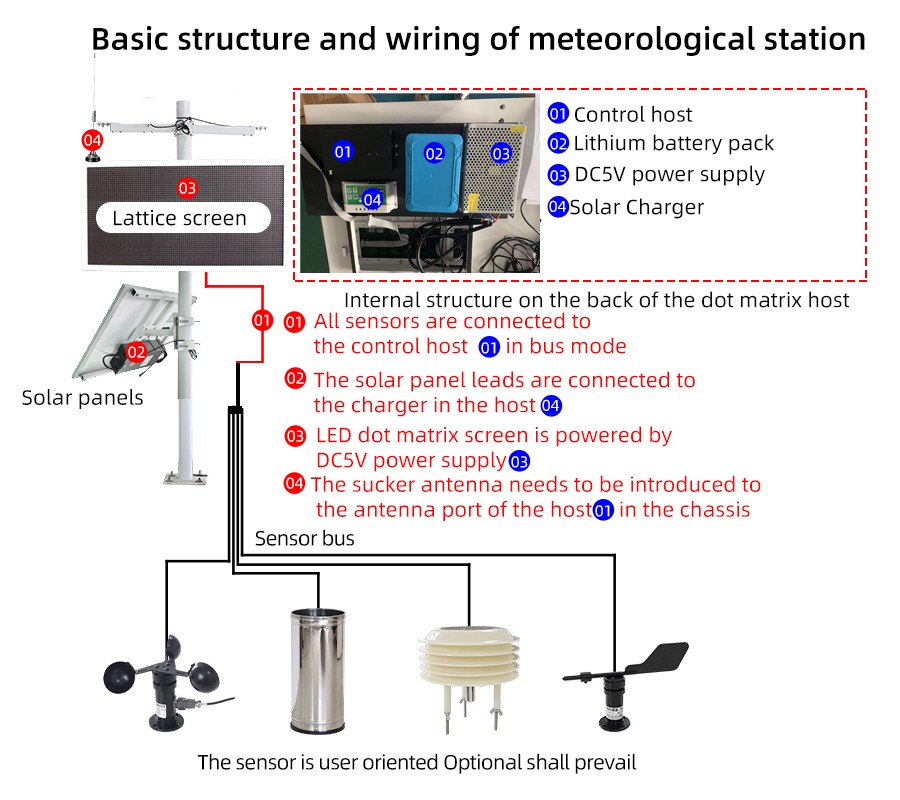

How to use?

SY0296

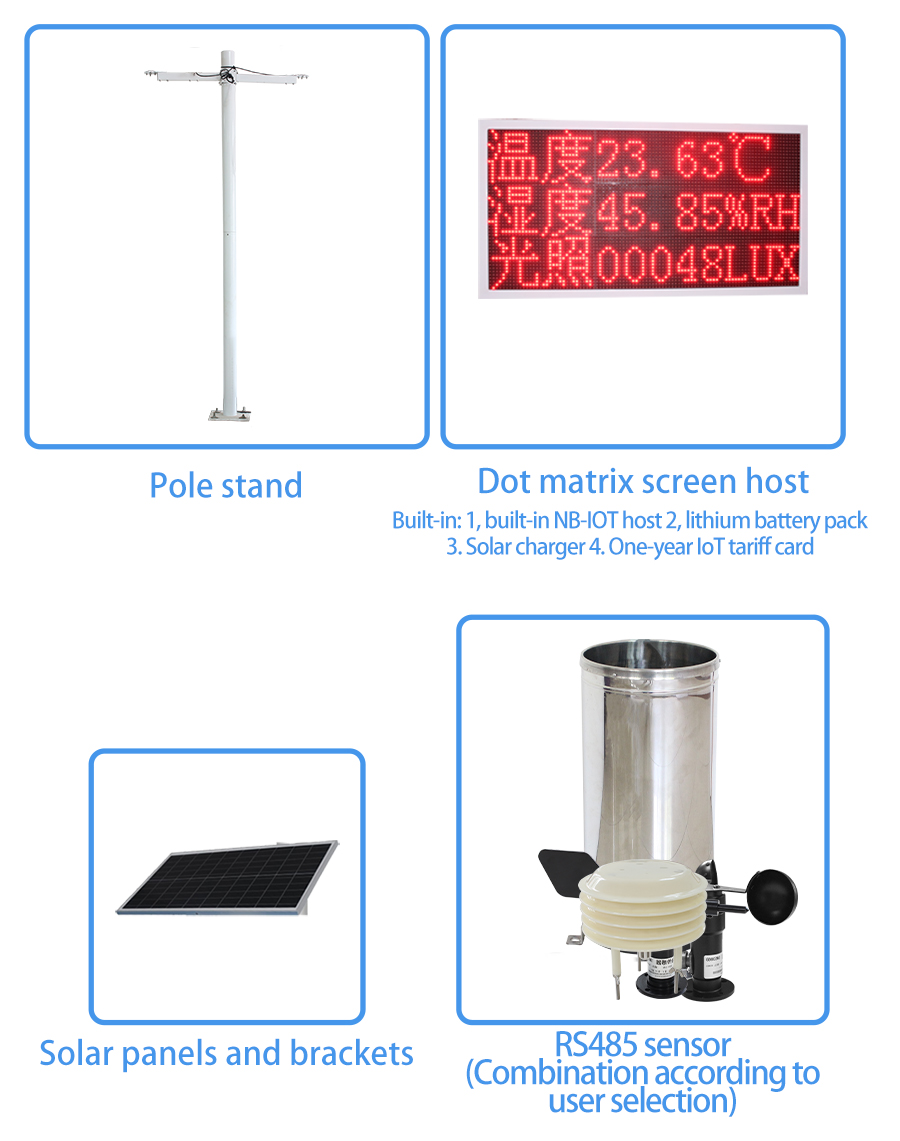

Product List

SY0296

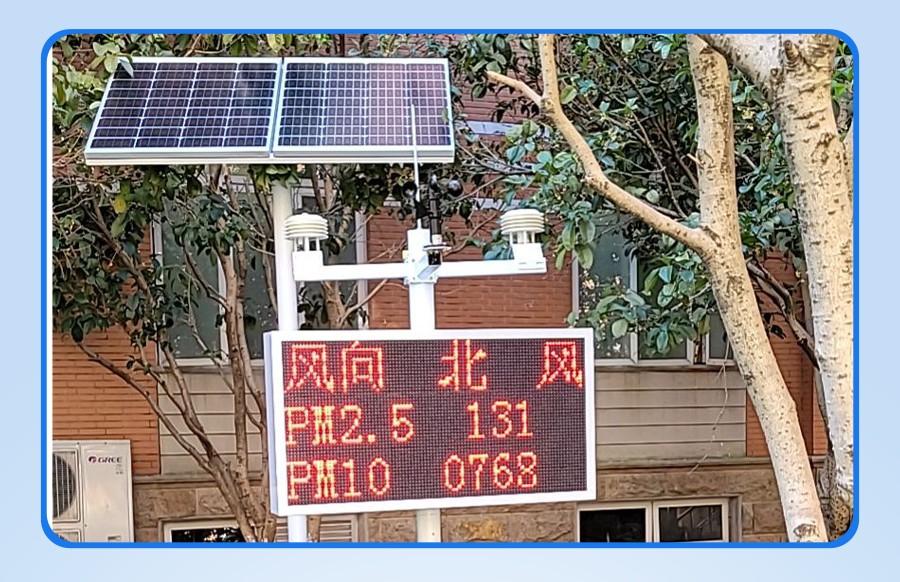

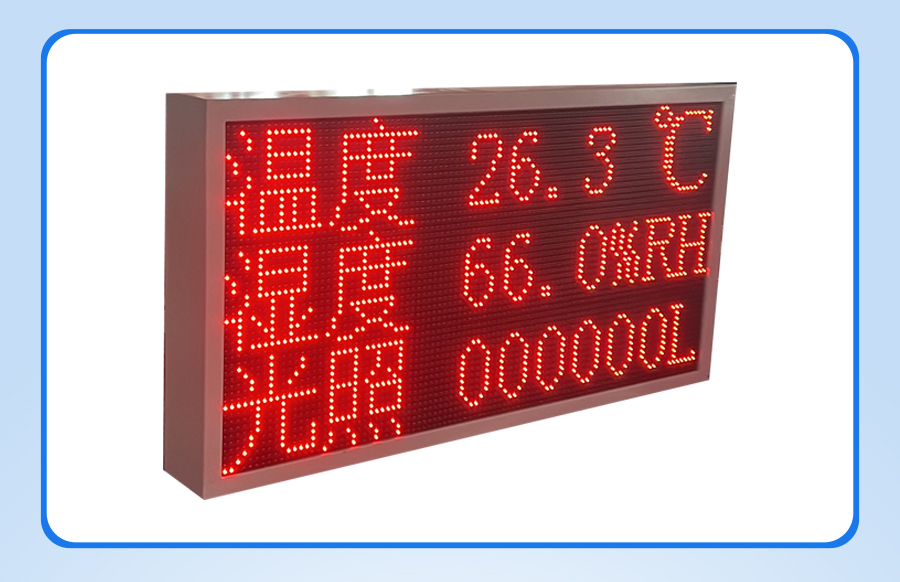

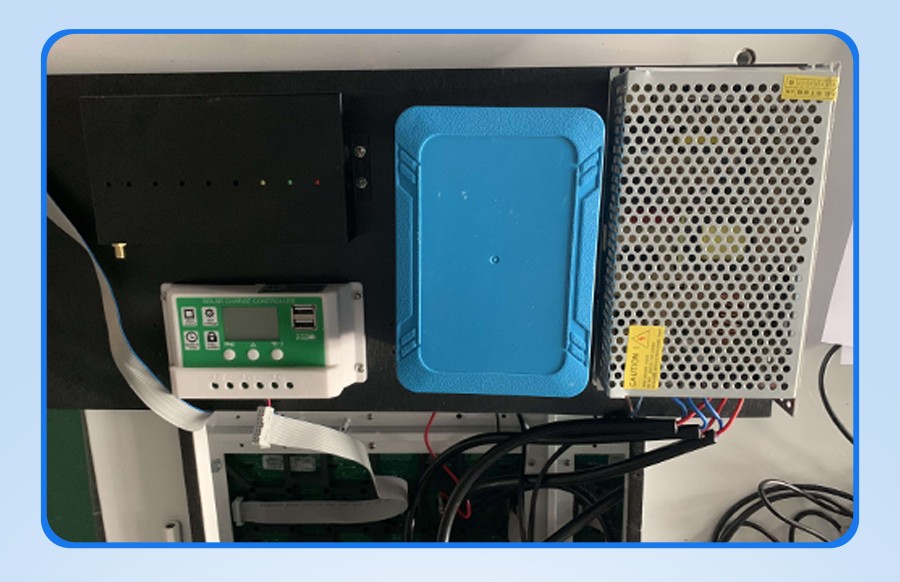

Pictures

SY0296 SY0296 SY0296
