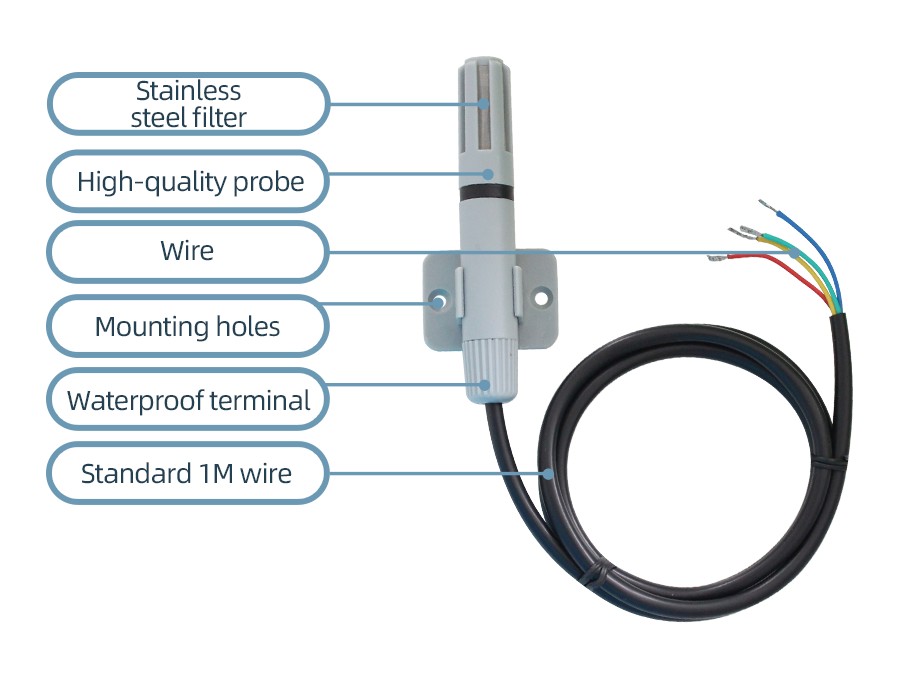

Product

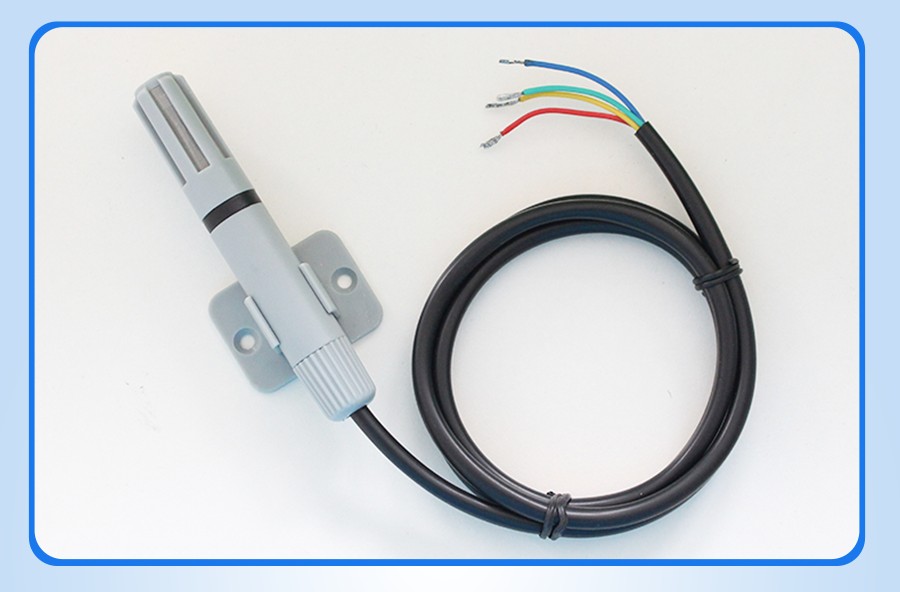

Technical Parameters

Technical parameter	Parameter value
Brand	SONBEST
Temperature measuring range	-30℃~80℃
Temperature measuring accuracy	±0.5℃ @25℃
Humidity measuring range	0~100%RH
Humidity accuracy	±3%RH @25℃
Interface	2-wire 4-20mA
Power	DC12~24V 1A
Running temperature	-30~85℃
Working humidity	5%RH~90%RH

Product Size

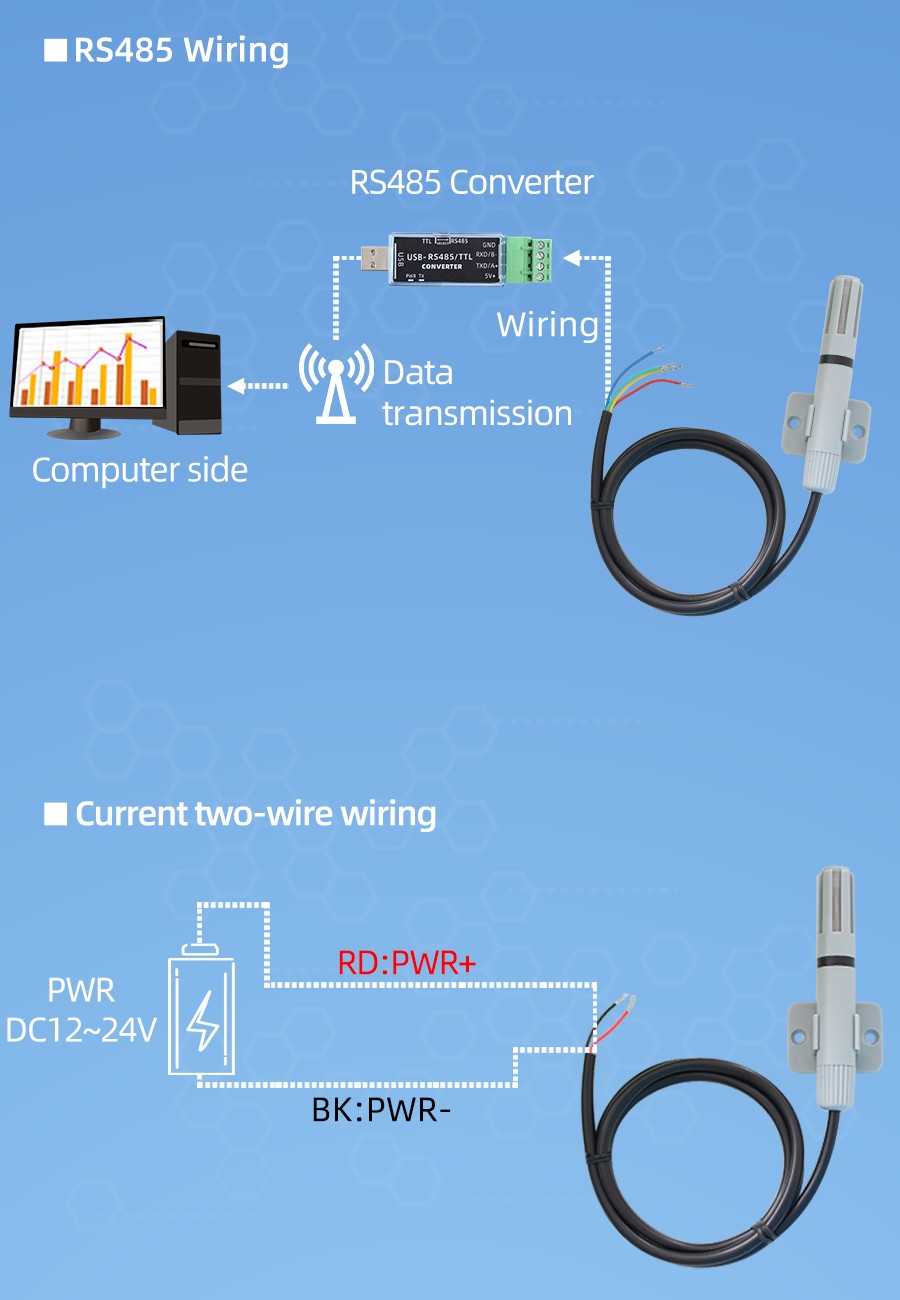

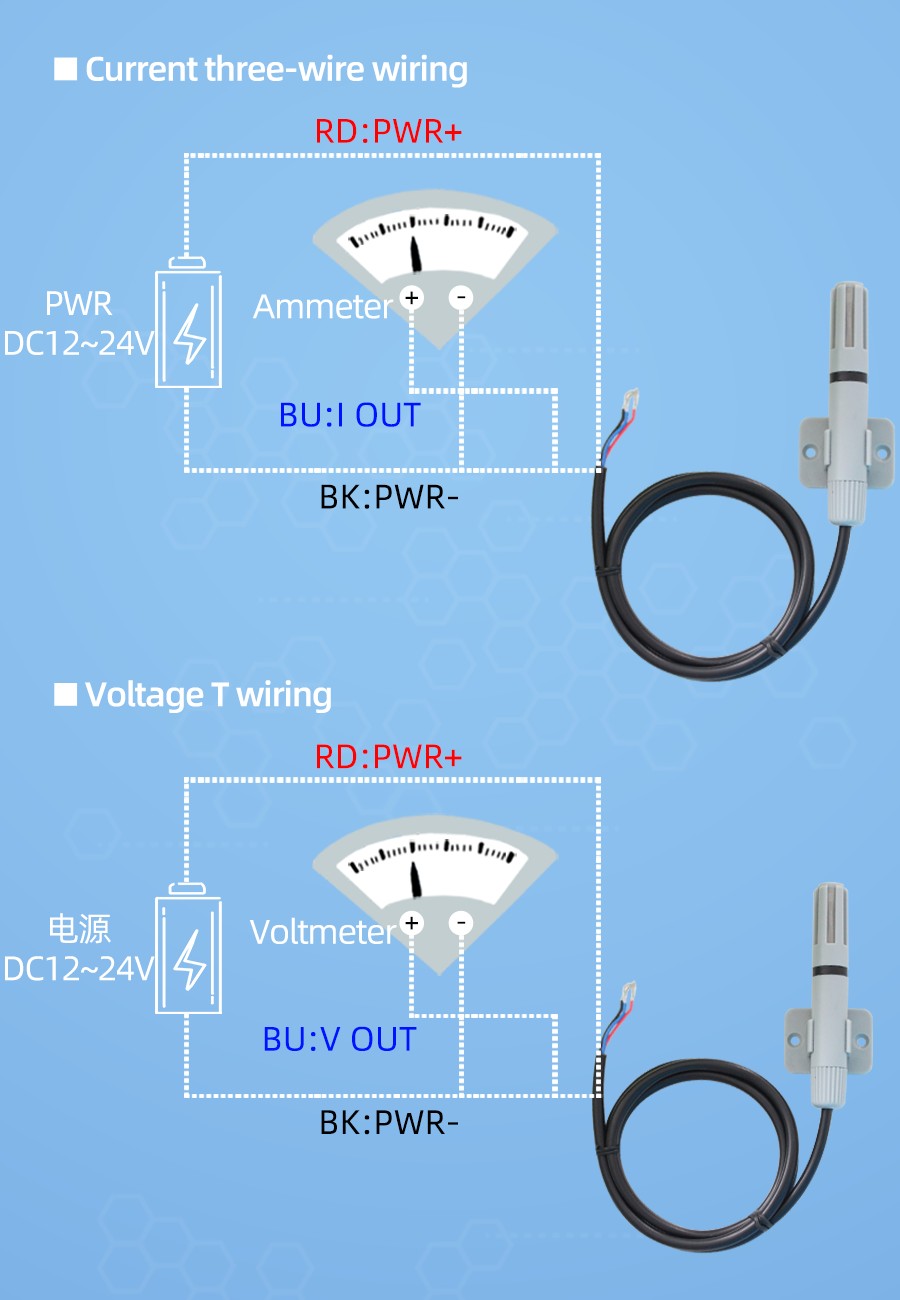

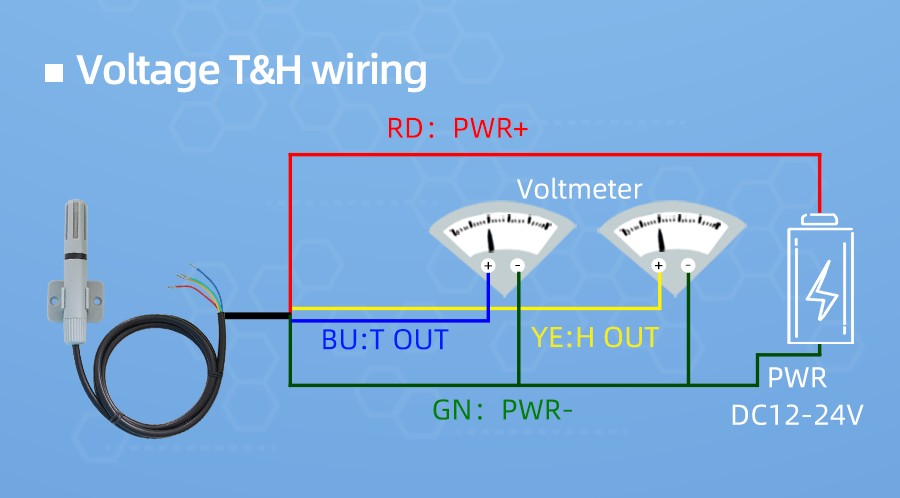

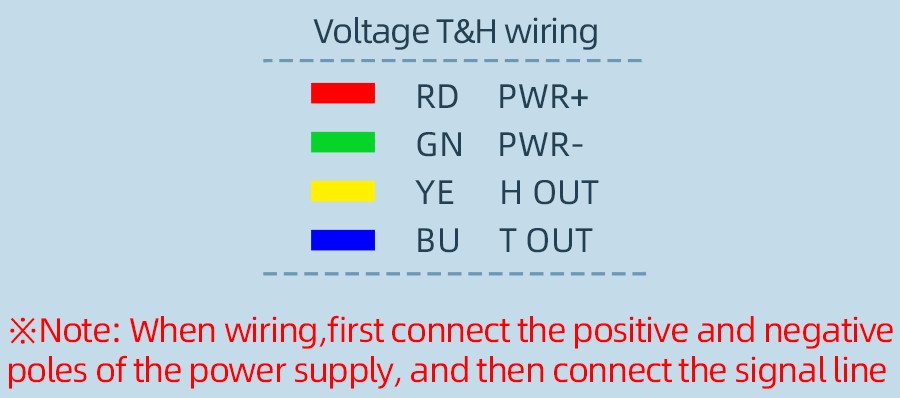

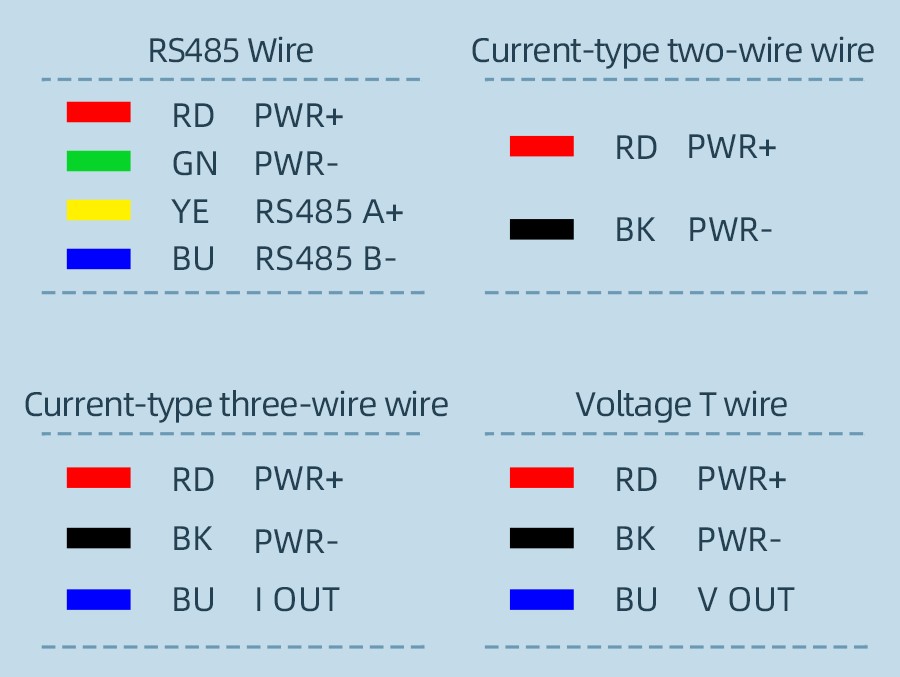

Wiring instructions

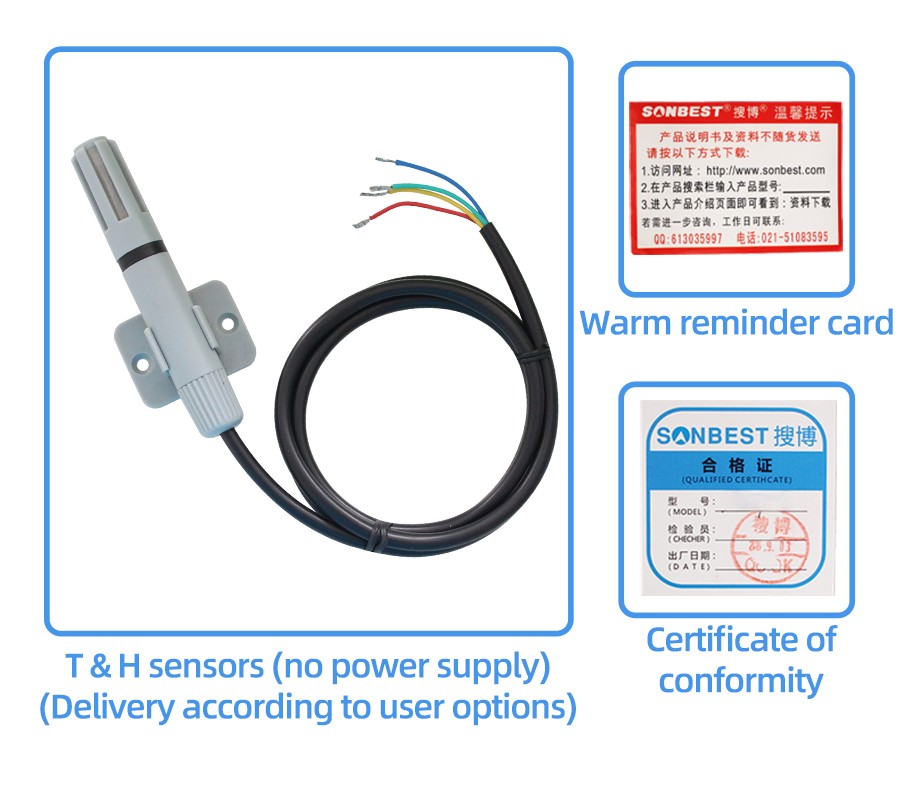

Kit recommendation

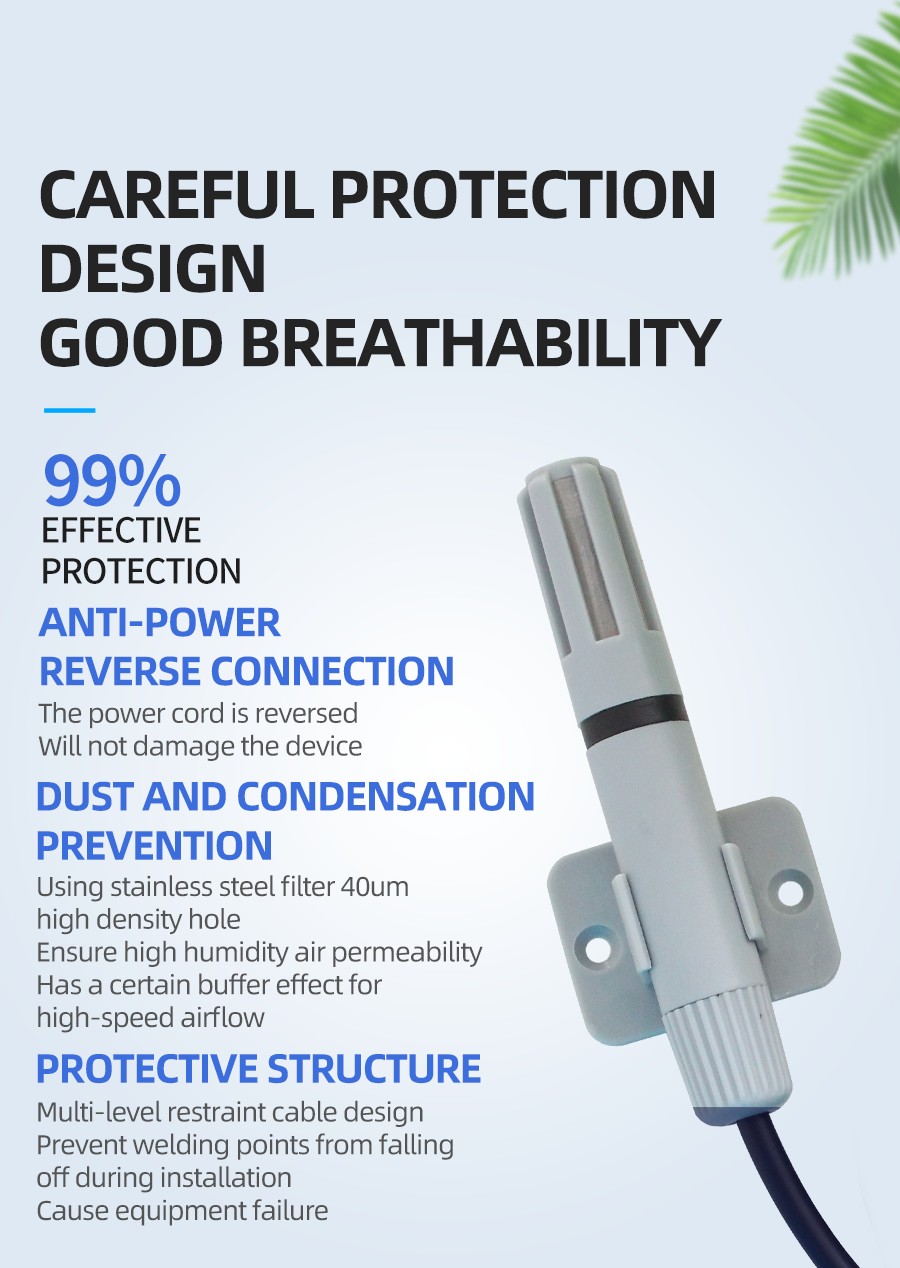

Why choose this product?

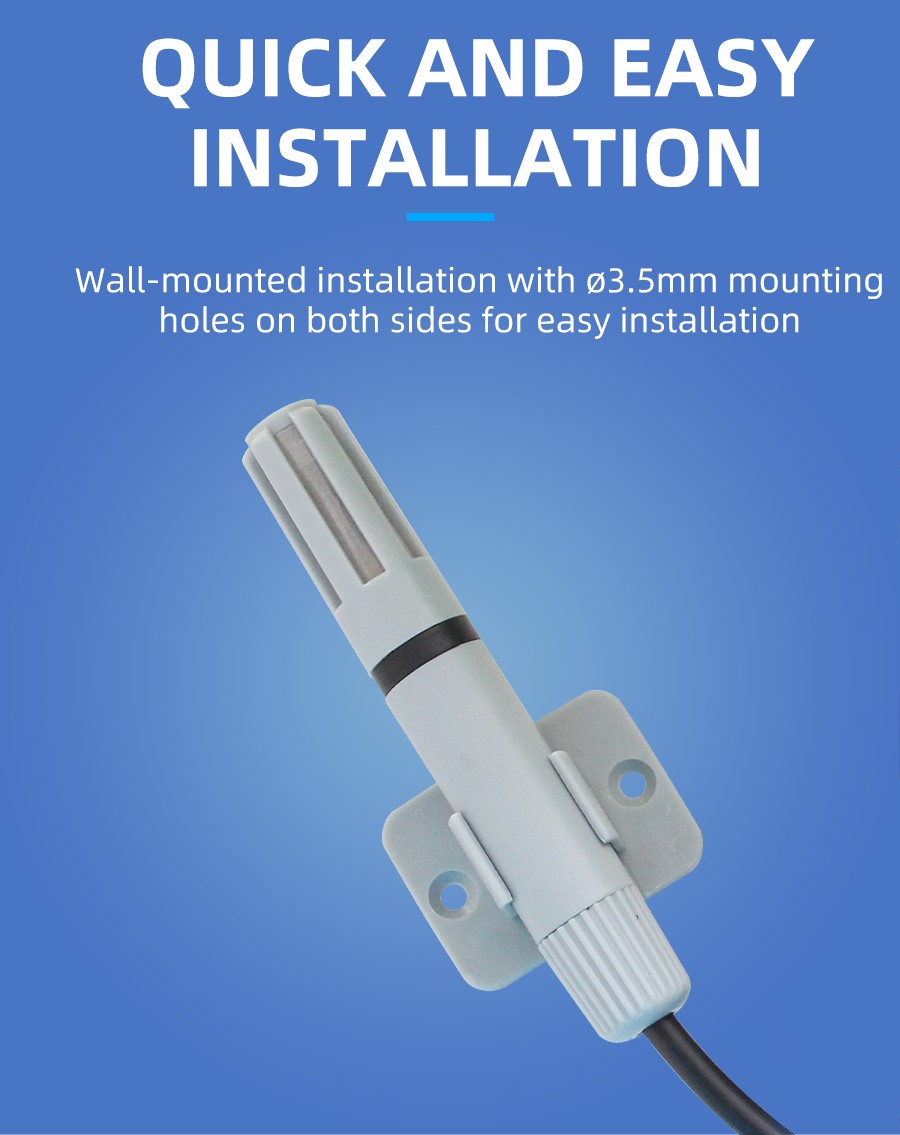

How to use?

Application solution

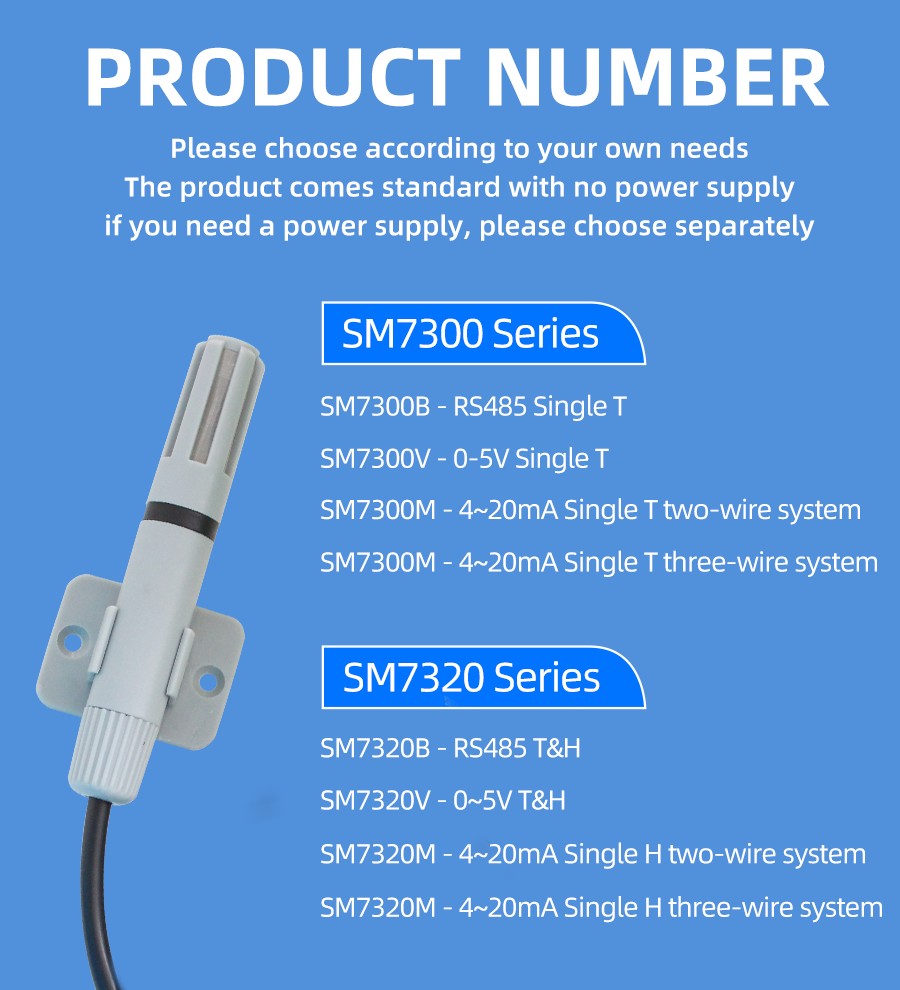

Product List

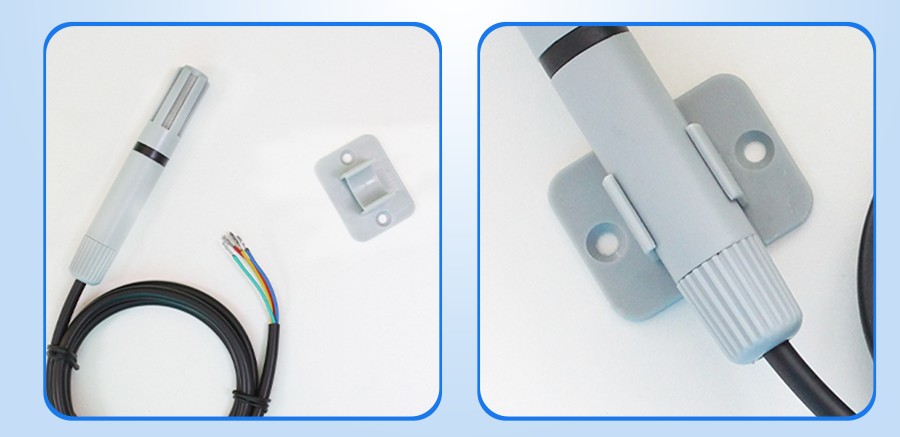

Pictures

1. temperature and current computing relationship

  For example, the range is -30~80℃, the analog output is 4~20mA current signal, temperature and current The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is temperature range upper limit, A1 is the lower limit of the range, B2 is current output range upper limit, B1 is the lower limit, X is the currently read temperature value, and C is the calculated current value. The list of commonly used values is as follows:

current(mA)	temperatureValue (℃)	Calculation Process
4	-30	(80-(-30))*(4-4)÷(20-4)+-30
5	-23.125	(80-(-30))*(5-4)÷(20-4)+-30
6	-16.25	(80-(-30))*(6-4)÷(20-4)+-30
7	-9.375	(80-(-30))*(7-4)÷(20-4)+-30
8	-2.5	(80-(-30))*(8-4)÷(20-4)+-30
9	4.375	(80-(-30))*(9-4)÷(20-4)+-30
10	11.25	(80-(-30))*(10-4)÷(20-4)+-30
11	18.125	(80-(-30))*(11-4)÷(20-4)+-30
12	25	(80-(-30))*(12-4)÷(20-4)+-30
13	31.875	(80-(-30))*(13-4)÷(20-4)+-30
14	38.75	(80-(-30))*(14-4)÷(20-4)+-30
15	45.625	(80-(-30))*(15-4)÷(20-4)+-30
16	52.5	(80-(-30))*(16-4)÷(20-4)+-30
17	59.375	(80-(-30))*(17-4)÷(20-4)+-30
18	66.25	(80-(-30))*(18-4)÷(20-4)+-30
19	73.125	(80-(-30))*(19-4)÷(20-4)+-30
20	80	(80-(-30))*(20-4)÷(20-4)+-30

    As shown in the above formula, when measuring 8mA, current current is 31.5℃。

2. humidity and current computing relationship

  For example, the range is 0~100%RH, the analog output is 4~20mA current signal, humidity and current The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is humidity range upper limit, A1 is the lower limit of the range, B2 is current output range upper limit, B1 is the lower limit, X is the currently read humidity value, and C is the calculated current value. The list of commonly used values is as follows:

current(mA)	humidityValue (%RH)	Calculation Process
4	0.0	(100-0)*(4-4)÷(20-4)+0
5	6.3	(100-0)*(5-4)÷(20-4)+0
6	12.5	(100-0)*(6-4)÷(20-4)+0
7	18.8	(100-0)*(7-4)÷(20-4)+0
8	25.0	(100-0)*(8-4)÷(20-4)+0
9	31.3	(100-0)*(9-4)÷(20-4)+0
10	37.5	(100-0)*(10-4)÷(20-4)+0
11	43.8	(100-0)*(11-4)÷(20-4)+0
12	50.0	(100-0)*(12-4)÷(20-4)+0
13	56.3	(100-0)*(13-4)÷(20-4)+0
14	62.5	(100-0)*(14-4)÷(20-4)+0
15	68.8	(100-0)*(15-4)÷(20-4)+0
16	75.0	(100-0)*(16-4)÷(20-4)+0
17	81.3	(100-0)*(17-4)÷(20-4)+0
18	87.5	(100-0)*(18-4)÷(20-4)+0
19	93.8	(100-0)*(19-4)÷(20-4)+0
20	100.0	(100-0)*(20-4)÷(20-4)+0

    As shown in the above formula, when measuring 8mA, current current is 29%RH。
