Technical Parameters

Technical parameter	Parameter value
Brand	SONBEST
Interface	RS485/4-20mA/DC0-5V
Power	DC9~26V/DC12~26V/DC9~26V
Running temperature	-30~85℃
Working humidity	5%RH~90%RH

Product Selection

    Product DesignRS485,4-20mA,DC0-5VMultiple output methods, the products are divided into the following models depending on the output method.

Product model	output method
SM2130B	RS485总线
SM2130M	4-20mA
SM2130V5	DC0-5V

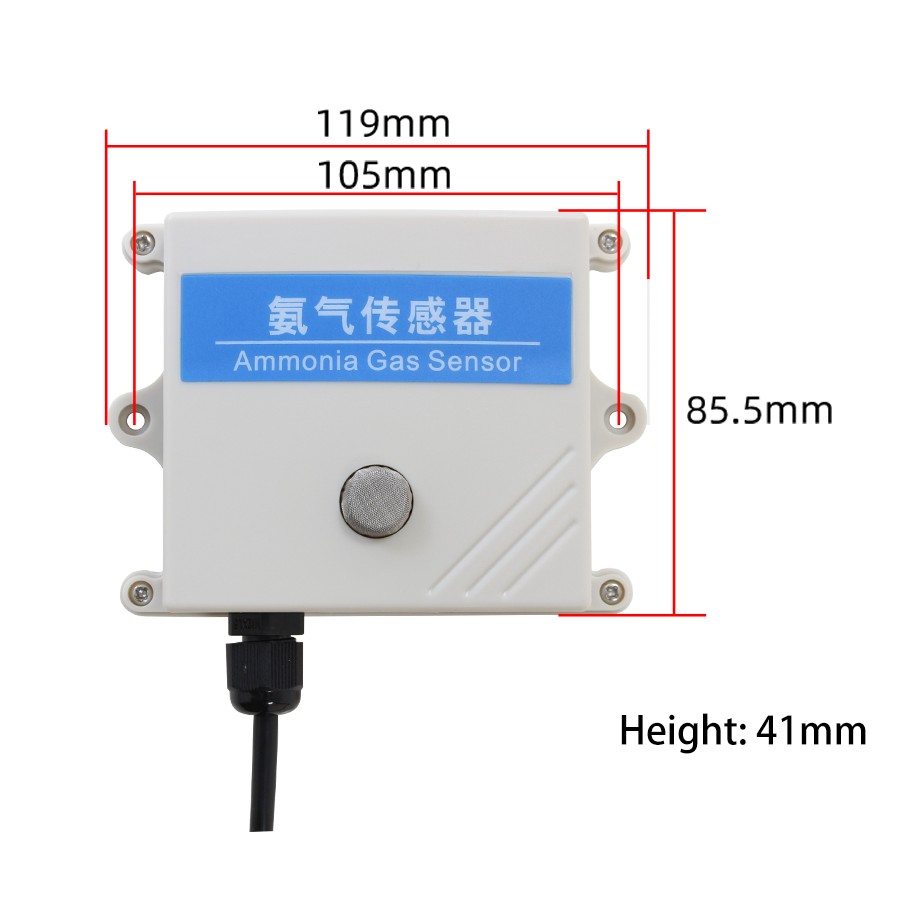

Product Size

Why choose this product?

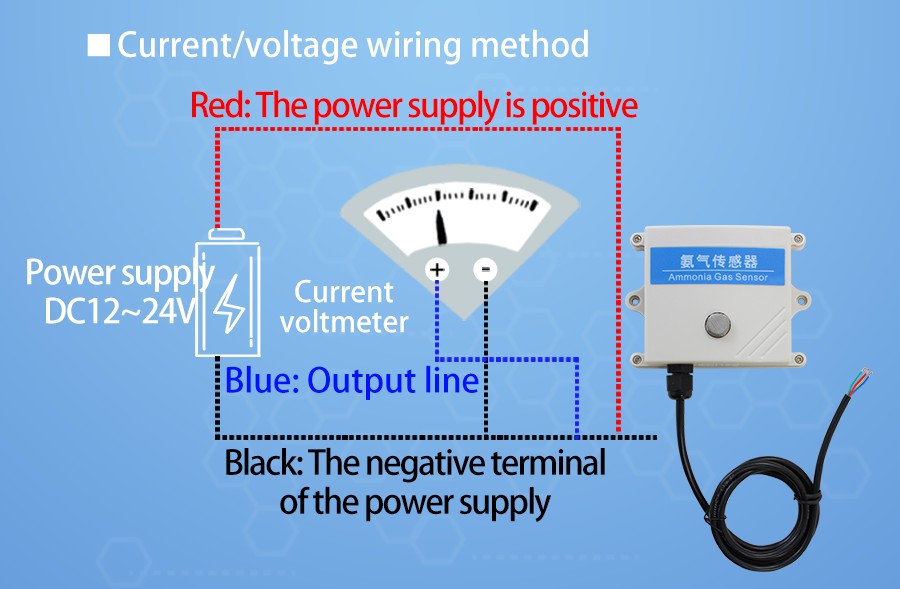

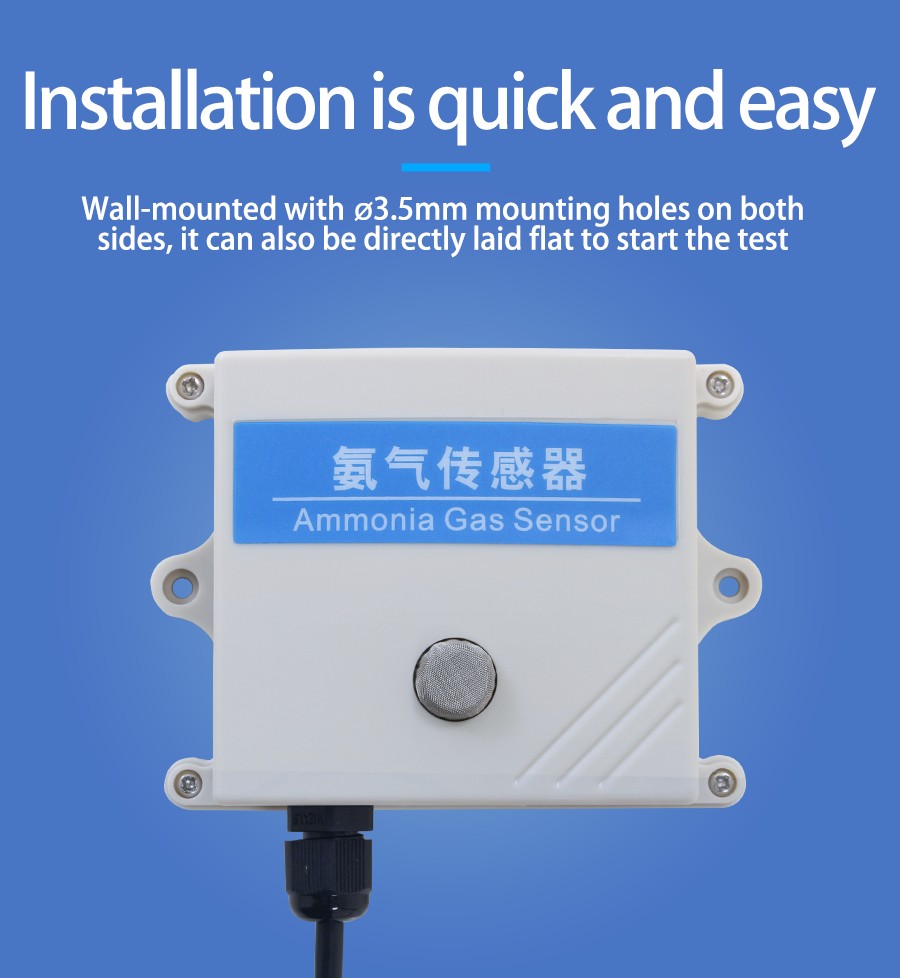

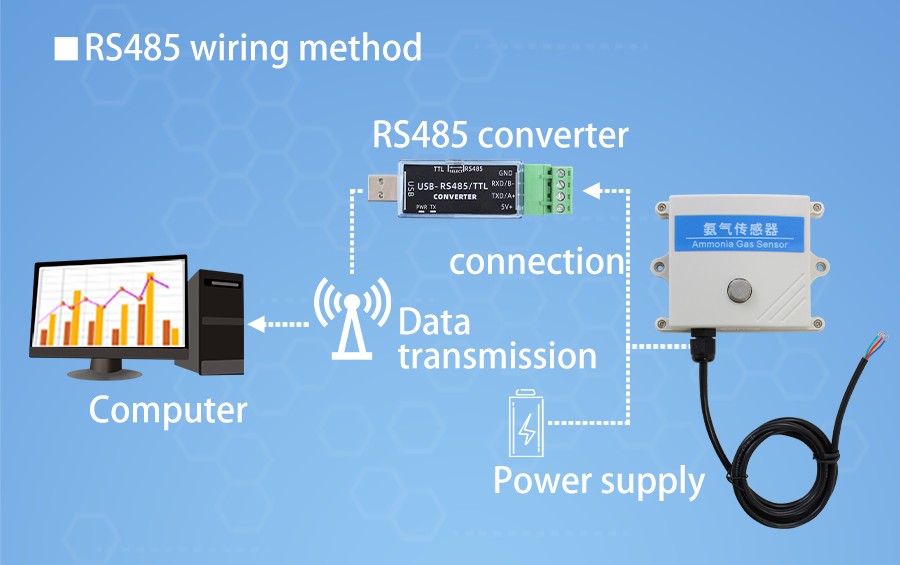

How to use?

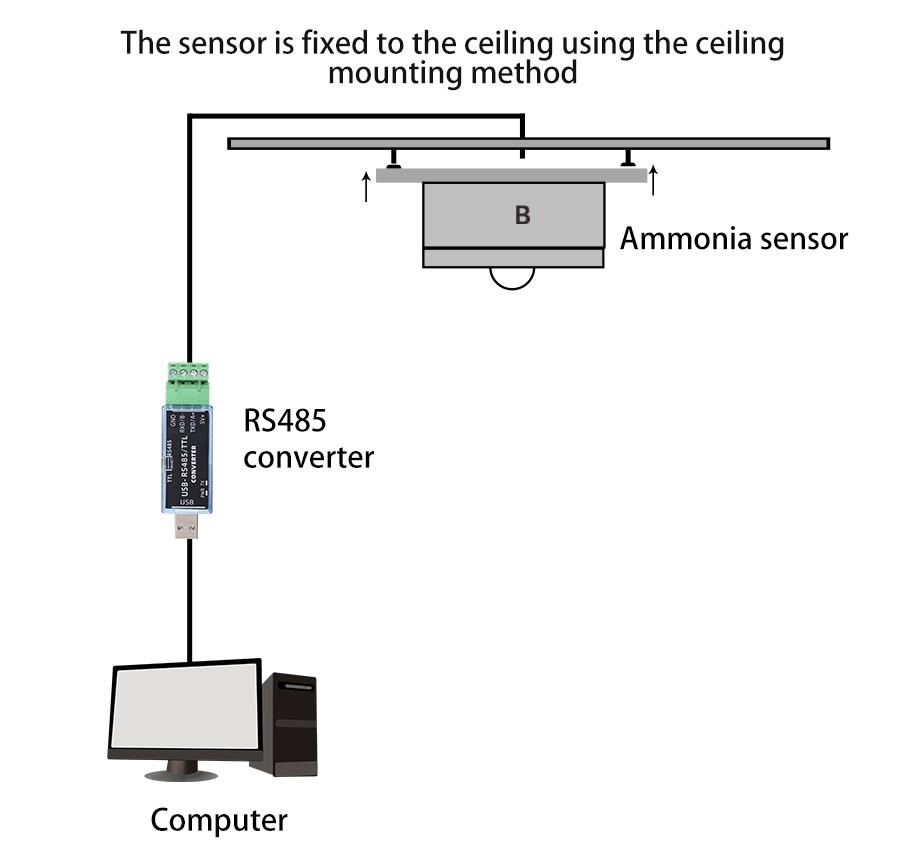

Application solution

Product List

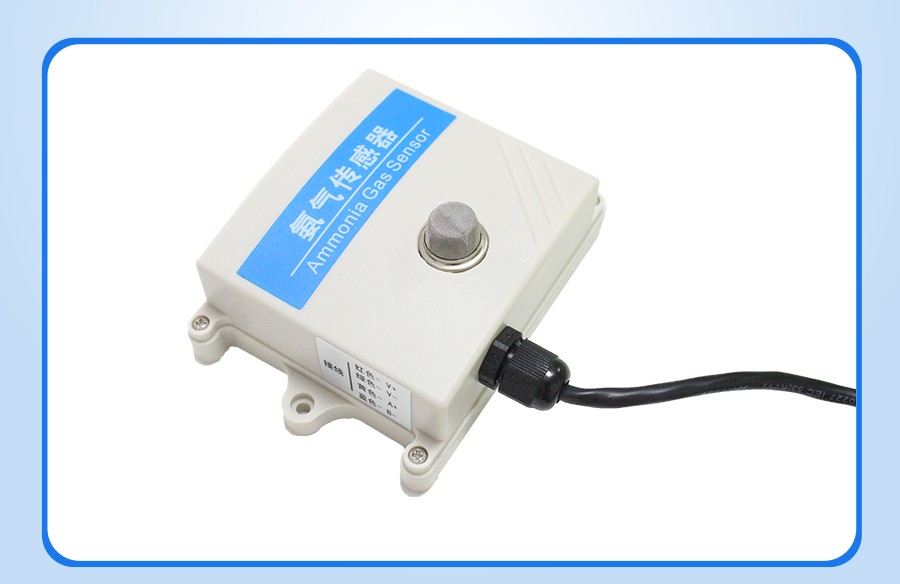

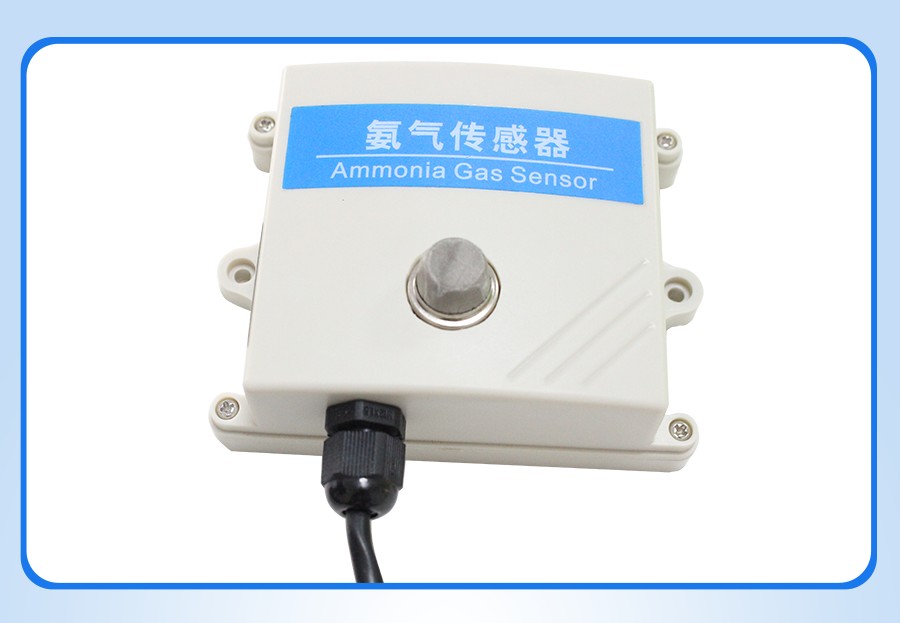

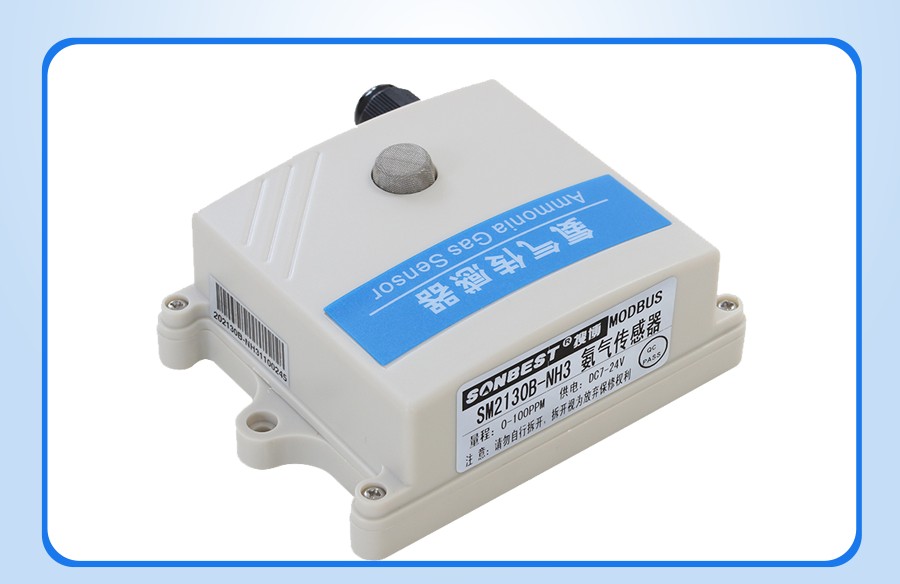

Pictures

Communication Protocol

    The product uses RS485 MODBUS-RTU standard protocol format, all operation or reply commands are hexadecimal data. The default device address is 1 when the device leaves the factory, and the module or NON-Recorder default baud rate is 9600,8,n,1 ,but data recorder default baud rate is 115200 .
1. Read data (function code 0x03)
    Inquiry frame (hexadecimal), sending example: query 1 data of 1# device, the upper computer sends the command: 01 03 00 00 00 01 84 0A .

Address	Function Code	Start Address	Data Length	Check Code
01	03	00 00	00 01	84 0A

    For the correct query frame, the device will respond with data: 01 03 02 00 79 79 A6 , response format:

Address	Function Code	Length	Data 1	Check Code
01	03	02	00 79	79 A6

    Data description: The data in the command is hexadecimal, take data 1 as an example, 00 79 is converted to decimal value as 121, assuming the data magnification is 100, then the real value is 121/100=1.21, Others and so on.
2. Common data address table

Configuration Address	Register Address	Register Description	Data Type	Value Range
40001	00 00	ammonia50	Read Only	0~65535
40101	00 64	Model Code	Read/Write	0~65535
40102	00 65	total number of measuring points	read/write	1~20
40103	00 66	device address	read/write	1~249
40104	00 67	baud rate	read/write	0~6
40105	00 68	communication mode	read/write	1~4
40106	00 69	protocol type	read/write	1~10

  For example, the range is 0~50°, the analog output is 4~20mA current signal, conductivity and current The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is conductivity range upper limit, A1 is the lower limit of the range, B2 is current output range upper limit, B1 is the lower limit, X is the currently read conductivity value, and C is the calculated current value. The list of commonly used values is as follows:

current(mA)	conductivityValue (°)	Calculation Process
4	0.0	(50-0)*(4-4)÷(20-4)+0
5	3.1	(50-0)*(5-4)÷(20-4)+0
6	6.3	(50-0)*(6-4)÷(20-4)+0
7	9.4	(50-0)*(7-4)÷(20-4)+0
8	12.5	(50-0)*(8-4)÷(20-4)+0
9	15.6	(50-0)*(9-4)÷(20-4)+0
10	18.8	(50-0)*(10-4)÷(20-4)+0
11	21.9	(50-0)*(11-4)÷(20-4)+0
12	25.0	(50-0)*(12-4)÷(20-4)+0
13	28.1	(50-0)*(13-4)÷(20-4)+0
14	31.3	(50-0)*(14-4)÷(20-4)+0
15	34.4	(50-0)*(15-4)÷(20-4)+0
16	37.5	(50-0)*(16-4)÷(20-4)+0
17	40.6	(50-0)*(17-4)÷(20-4)+0
18	43.8	(50-0)*(18-4)÷(20-4)+0
19	46.9	(50-0)*(19-4)÷(20-4)+0
20	50.0	(50-0)*(20-4)÷(20-4)+0

    As shown in the above formula, when measuring 8mA, current current is 16.5°。
  For example, the range is 0~50°, the analog output is 0~5V DC0-5Vvoltage signal, conductivity and DC0-5Vvoltage The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is conductivity range upper limit, A1 is the lower limit of the range, B2 is DC0-5Vvoltage output range upper limit, B1 is the lower limit, X is the currently read conductivity value, and C is the calculated DC0-5Vvoltage value. The list of commonly used values is as follows:

DC0-5Vvoltage(V)	conductivityValue (°)	Calculation Process
0	0.0	(50-0)*(0-0)÷(5-0)+0
1	10.0	(50-0)*(1-0)÷(5-0)+0
2	20.0	(50-0)*(2-0)÷(5-0)+0
3	30.0	(50-0)*(3-0)÷(5-0)+0
4	40.0	(50-0)*(4-0)÷(5-0)+0
5	50.0	(50-0)*(5-0)÷(5-0)+0

    As shown in the above formula, when measuring 2.5V, current DC0-5Vvoltage is 25°。
