Technical Parameters
| Technical parameter | Parameter value |
| Brand | SONBEST |
| Temperature measurement range | -50℃ to +100℃ (optional with other ranges) |
| Detecting Core Devices | PT100 |
| Temperature Measurement Accuracy | ± 0.5℃ (0.5FS) |
| Thermal Response Coefficient | 10mΩ/K |
| The resistance @ ℃ | 1000Ω±0.12Ω/K |
| The resistance rate | 0.385Ω/K |
| Reference Standards | Using EN 60751 Class B Standards |
| Channels | 1 |
| Communication Interface | DC4~20mA |
| Power | DC12~24V 1A |
| Running temperature | -30~85℃ |
| Working humidity | 5%RH~90%RH |

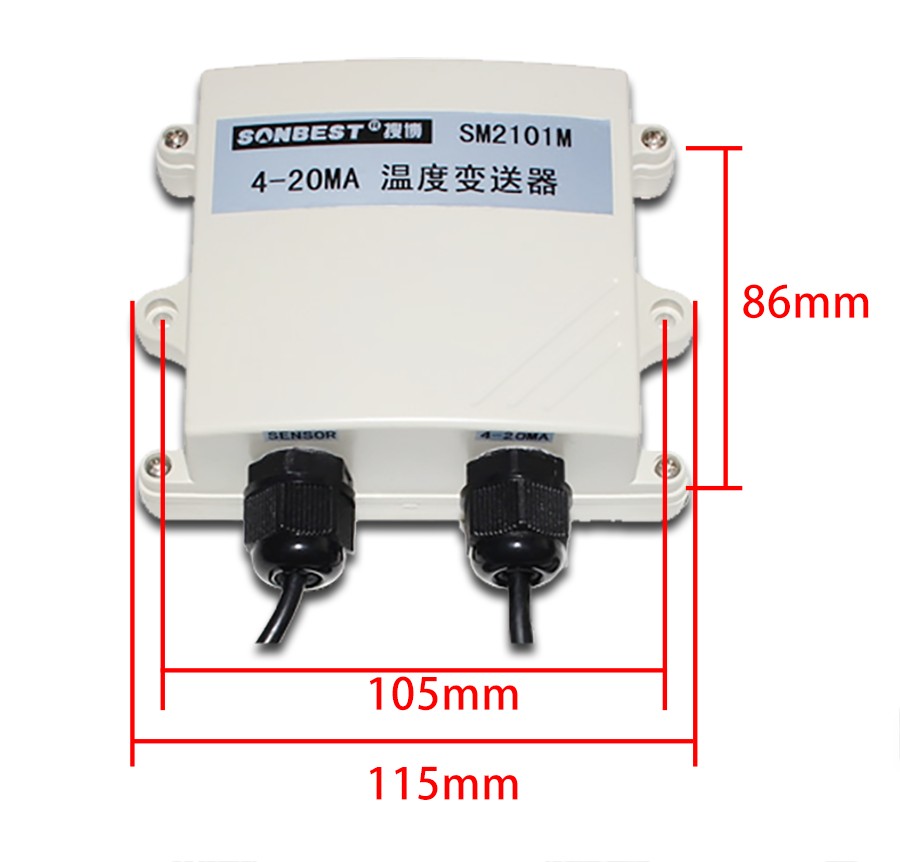

Product Size

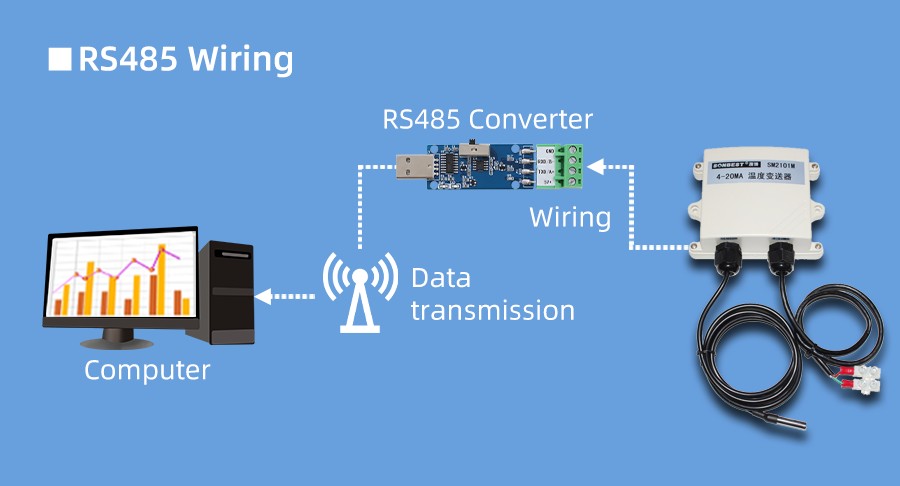

Wiring instructions
Why choose this product?

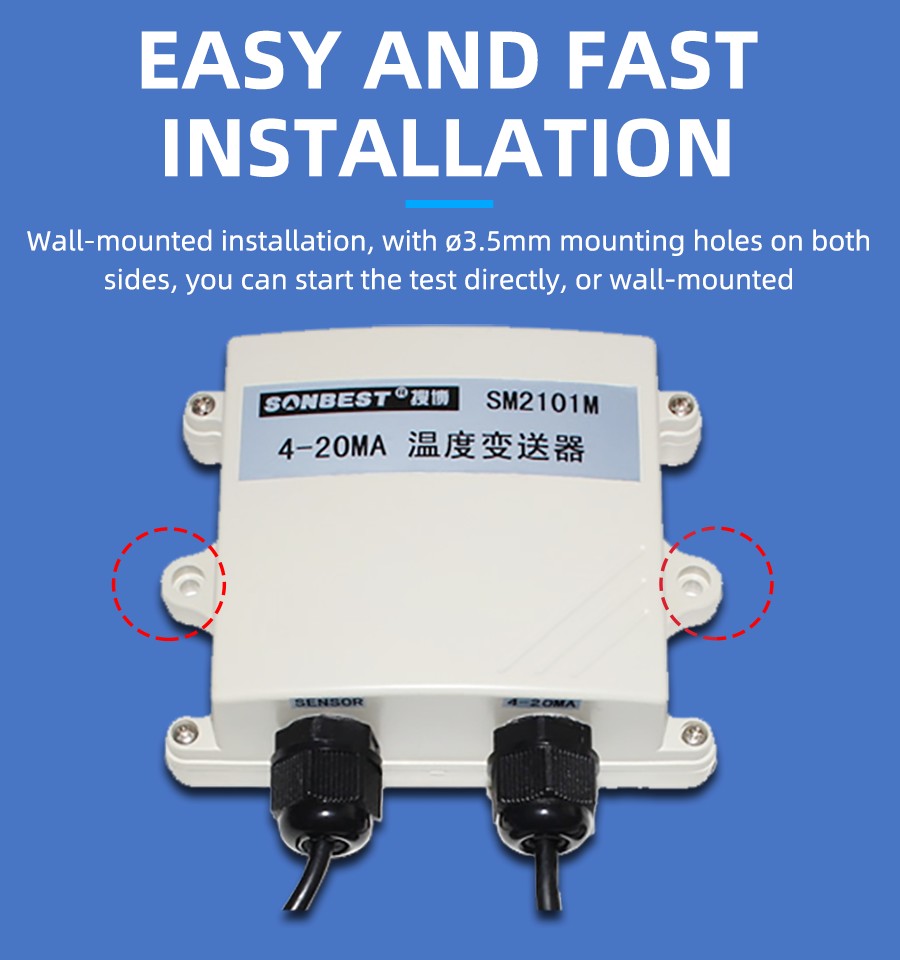

How to use?
Application solution

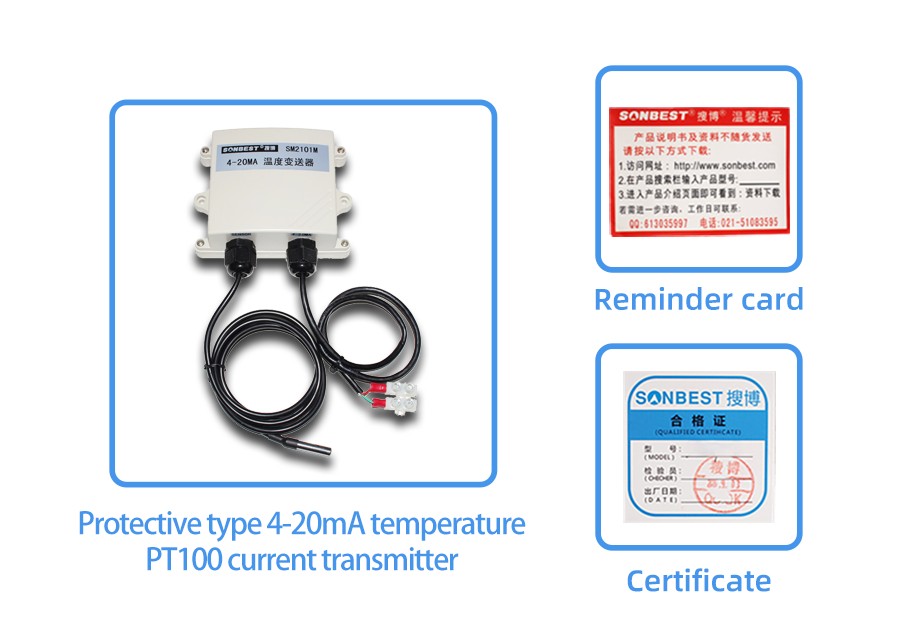

Product List

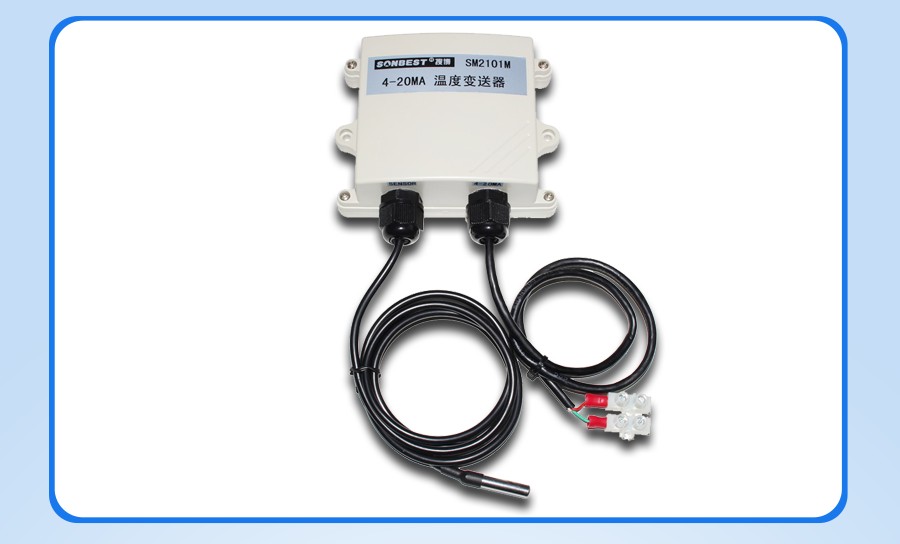

Pictures
